DR-1000X Core Drilling Rig
BTW 1200 m · NTW 1000 m · HTW 800 m · 2600 N·m
The DR-1000X Core Drilling Rig is a fully hydraulic crawler rig for mineral exploration and geological drilling. Its drill-string capacities are BTW 1,200 m, NTW 1,000 m and HTW 800 m, with maximum torque of 2,600 N·m.
Technical specifications
| Model | DR-1000X |
|---|---|
| Drilling capacity — BTW | 1200 m |
| Drilling capacity — NTW | 1000 m |
| Drilling capacity — HTW | 800 m |
| Maximum torque | 2600 N·m |
Depth figures apply to the named drill-string specifications.

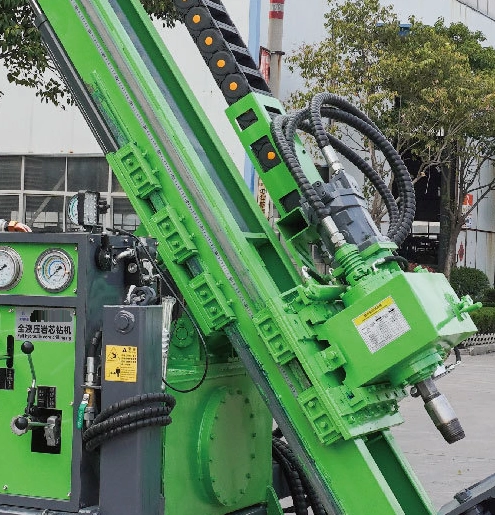

Rotary head and hose carrier
The rotary head is mounted on the mast guides. Hydraulic lines connect to the head beside the articulated hose carrier, with the spindle directed toward the lower drilling assembly.

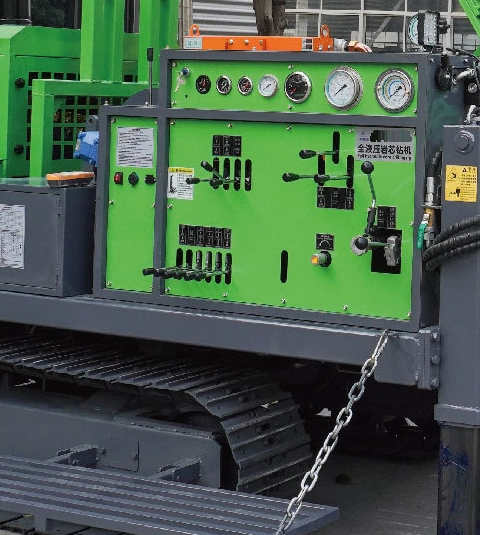

Side console and operating platform
The side console brings manual levers, switches and circular gauges together beside the mast. A fold-down platform sits below the controls along the crawler track.

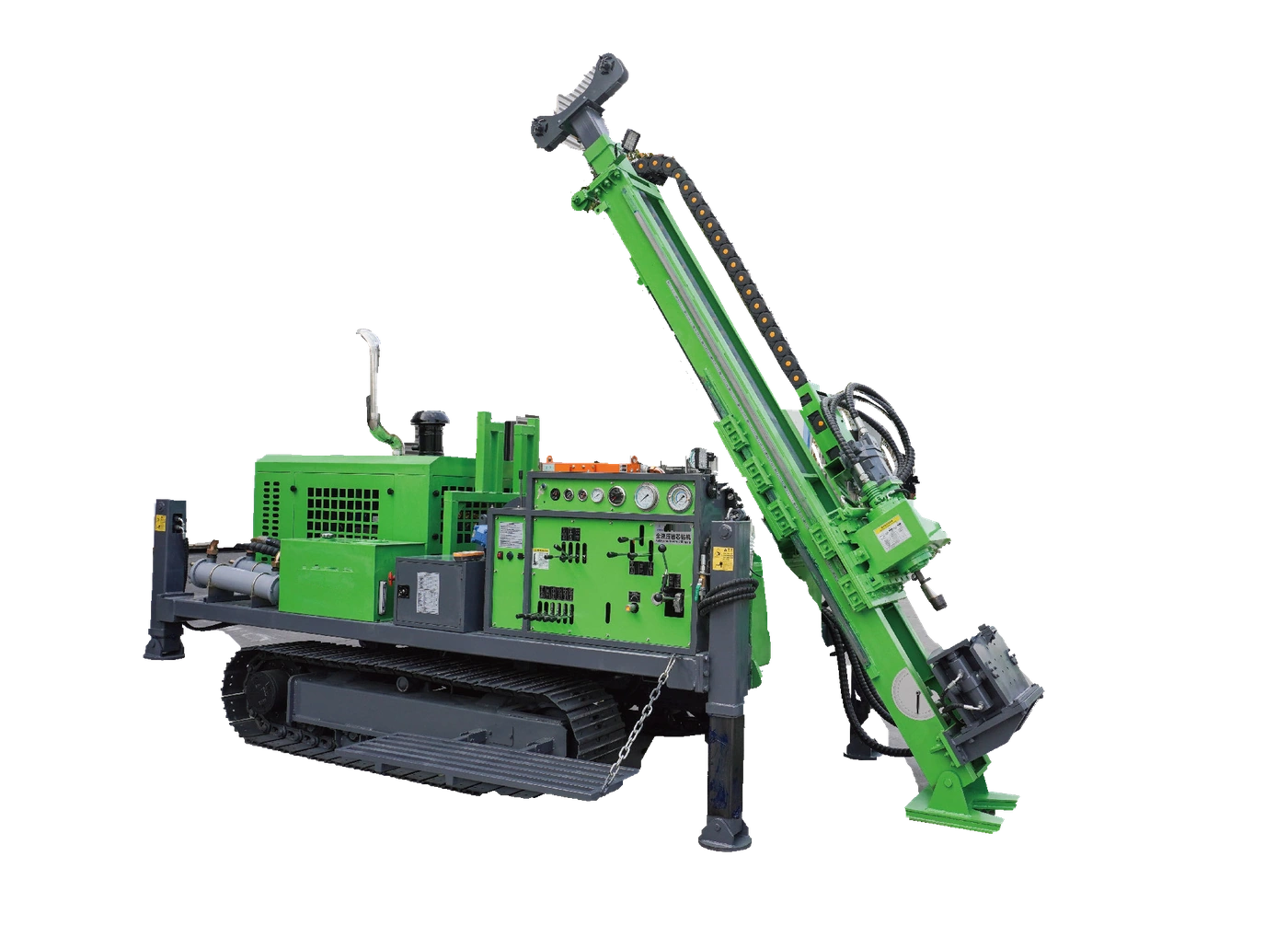

DR-1000X Core Drilling Rig with hydraulic rotary head
The DR-1000X Core Drilling Rig combines a mast-mounted rotary head with a crawler undercarriage. Hydraulic lines connect to the head, and an articulated hose carrier follows the side of the mast. A lower clamp assembly sits below the head on the drilling axis.
Drill-string capacities
- BTW: 1,200 m
- NTW: 1,000 m
- HTW: 800 m
Depth figures apply to the named drill-string specifications. Maximum torque is 2,600 N·m.
Operating console and platform
The side-mounted console groups manual operating levers, switches and circular gauges. A fold-down platform is positioned below the console, alongside the crawler track. Stabilizer legs are mounted around the chassis.
Explore core drilling rigs, or request a quotation for the DR-1000X Core Drilling Rig.
