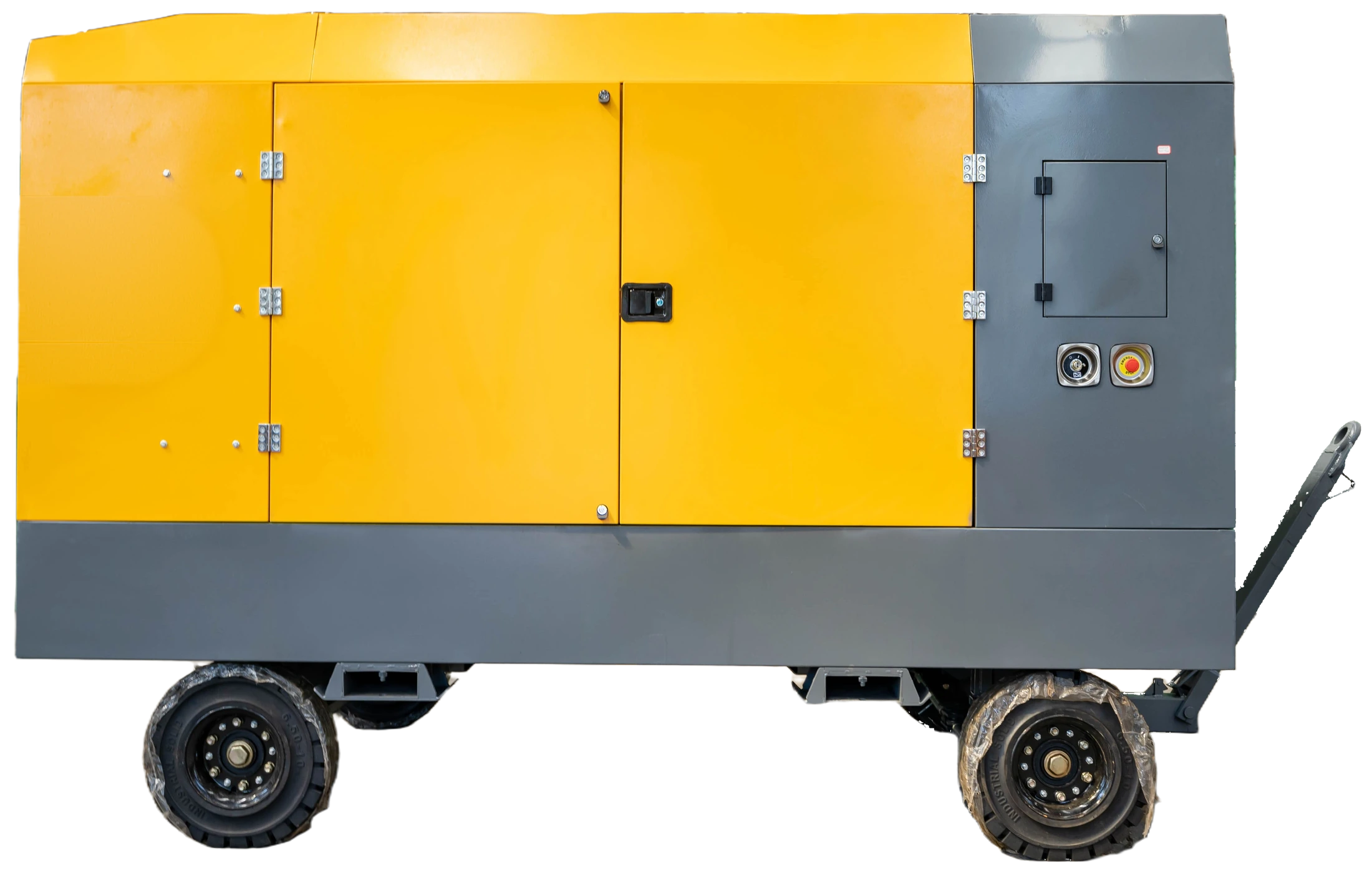

DR-1200A Air Compressor
31 m³/min · 2.5 MPa · 4200 kg
The DR-1200A Air Compressor delivers 31 m³/min at 2.5 MPa, with a CA6DM2-42GAG2 engine and a wheeled chassis.
Technical specifications
| Model | DR-1200A |
|---|---|
| Air delivery (m³/min) | 31 |
| Discharge pressure (MPa) | 2.5 |
| Engine model | CA6DM2-42GAG2 |
| Weight (kg) | 4200 |
| Dimensions (mm) | 3500 × 2000 × 2150 |

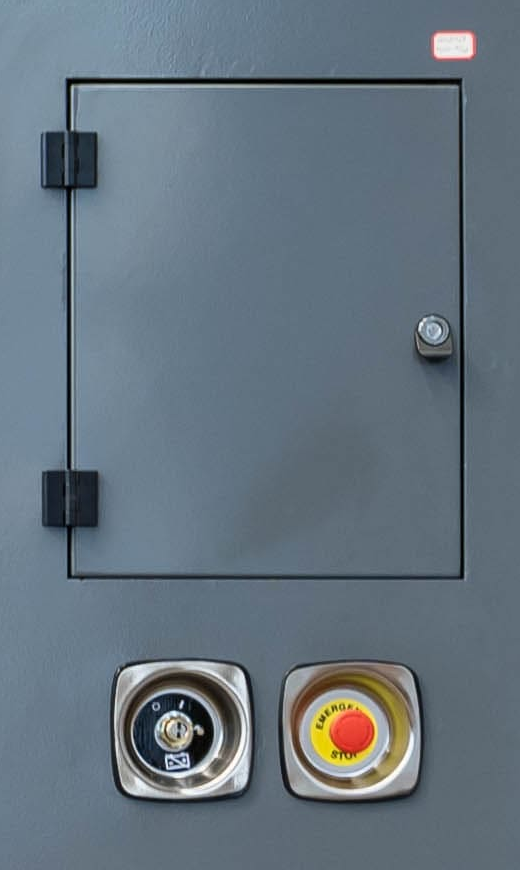

External control area
The control area sits at the end of the enclosure. A hinged cabinet door is positioned above the key switch and red emergency-stop button, keeping these controls accessible from outside the housing.

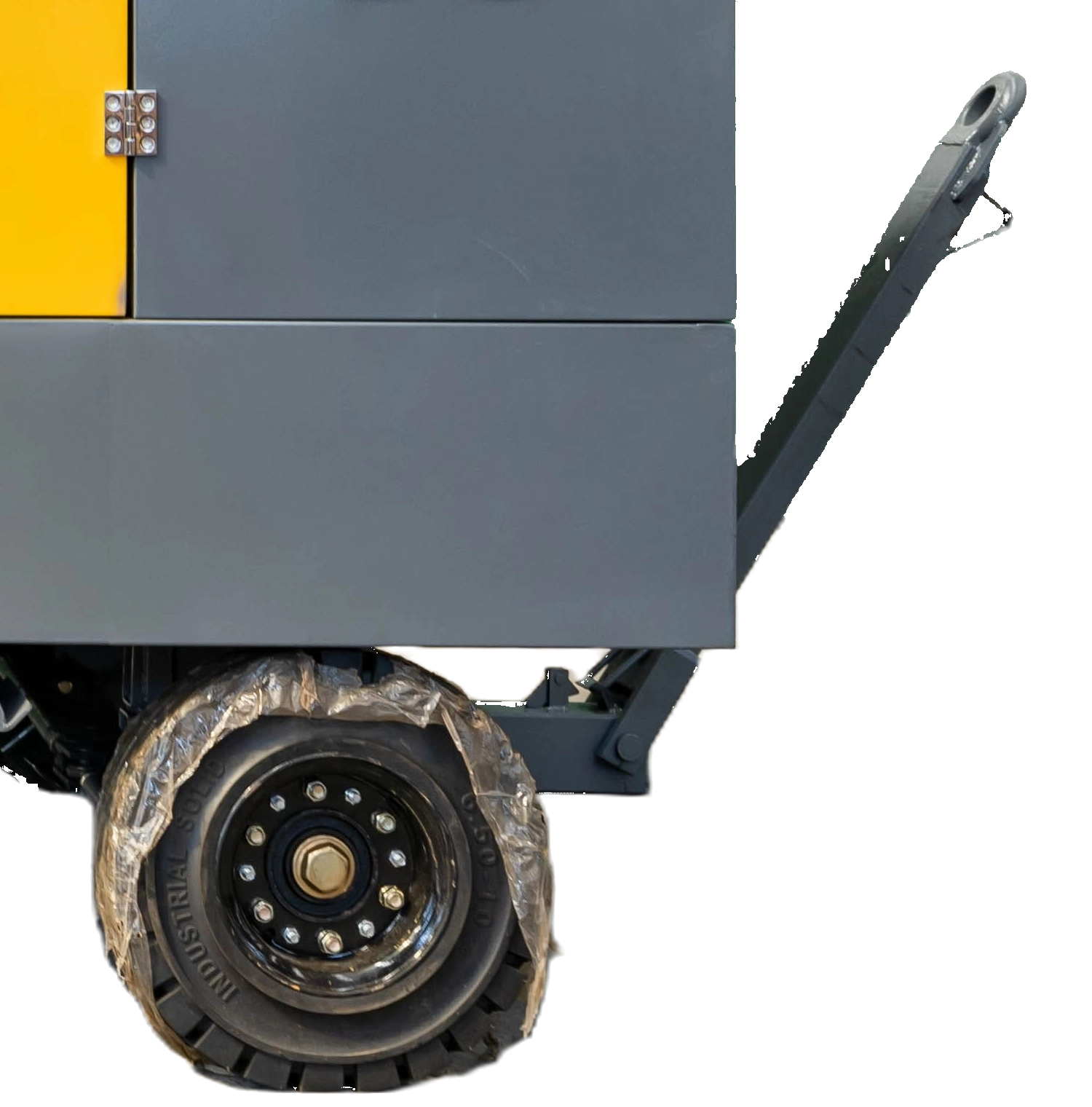

Wheeled chassis and towing eye
The compressor is mounted on a wheeled chassis. A drawbar with a towing eye extends from the end of the chassis, providing a connection for moving the unit around the worksite.

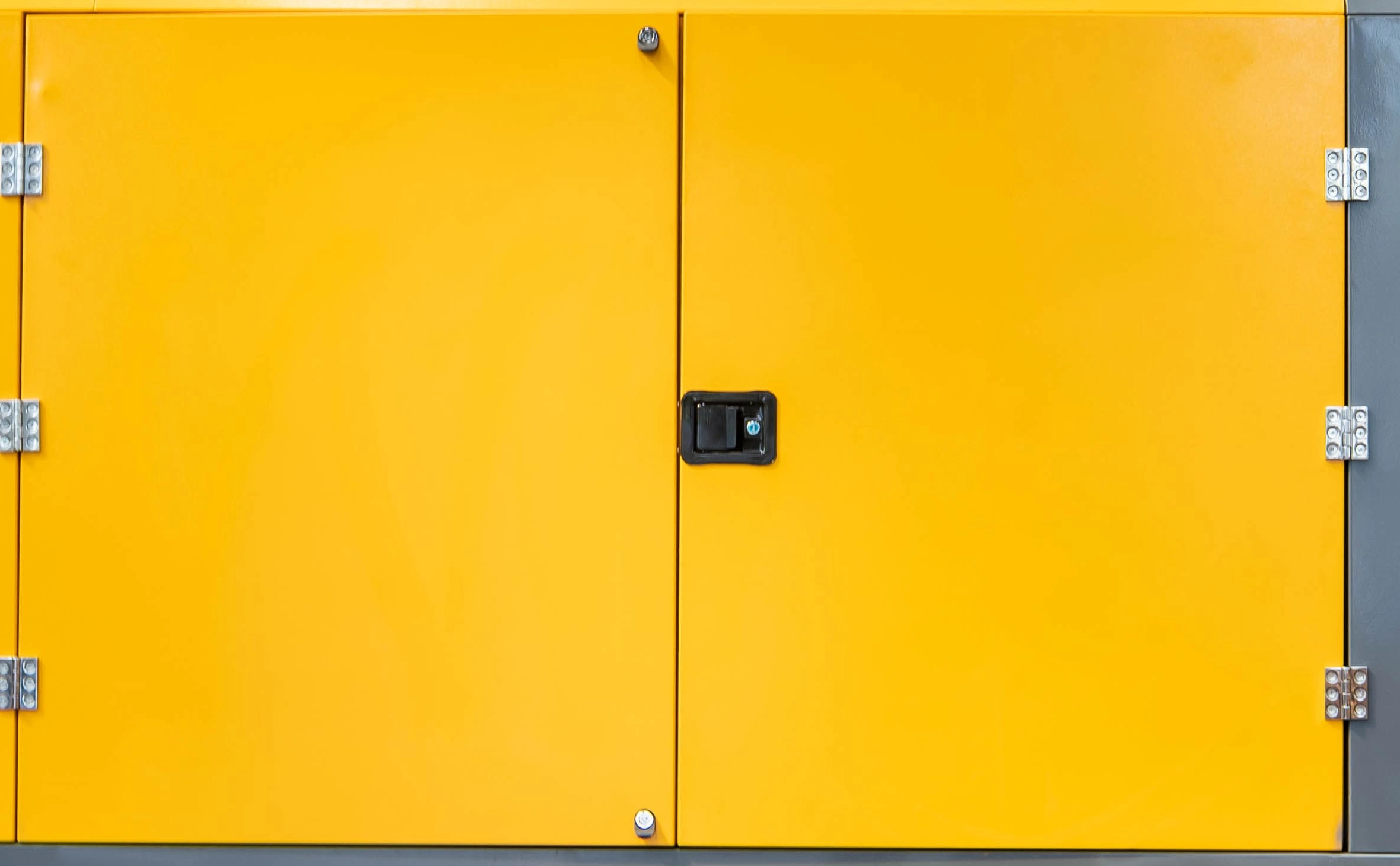

Hinged side access doors
Large hinged doors run along the side of the enclosure. A recessed handle and exposed hinges provide access through the side panels for inspection and servicing.
DR-1200A Air Compressor: mobile compressed air
The DR-1200A Air Compressor is an engine-driven screw compressor for mobile compressed-air supply. It delivers 31 m³/min at a discharge pressure of 2.5 MPa and uses a CA6DM2-42GAG2 engine.
What is the discharge pressure in bar?
The discharge pressure is 25 bar, equivalent to 2.5 MPa. Air delivery is 31 m³/min; this is the airflow volume per minute, while the pressure value describes the compressed-air pressure.
What are the dimensions and weight?
The unit weighs 4200 kg and measures 3500 × 2000 × 2150 mm.
