DR-150 Water Well Drilling Rig
Depth rating 300 m · Diameter 105–305 mm · Engine 92 kW
The DR-150 Water Well Drilling Rig is a crawler-mounted hydraulic rig with a maximum borehole-depth rating of 300 m, a 105–305 mm borehole-diameter range and a 92 kW engine.

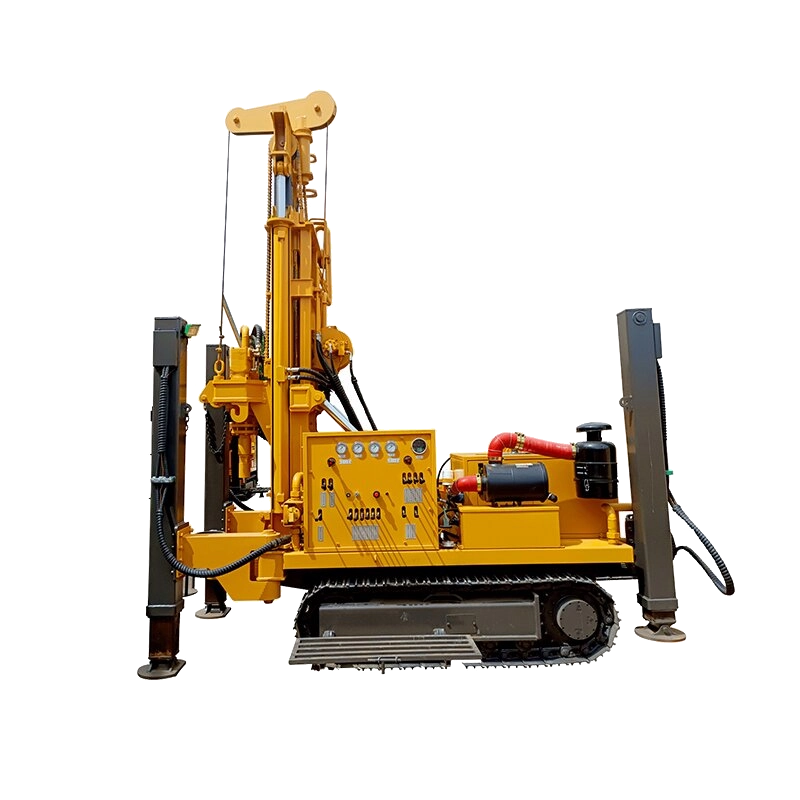

DR-150 Water Well Drilling Rig with crawler chassis
The DR-150 Water Well Drilling Rig combines hydraulic drilling controls with a mast-mounted rotary head. The machine is supported by a crawler undercarriage and four stabilizer legs, with an operating platform beside the side-mounted control panel.
Drilling range and drill pipe
The maximum borehole-depth rating is 300 m and the borehole-diameter range is 105–305 mm. Drill-pipe diameters are 76, 89 and 102 mm. The engine is rated at 92 kW.
Mast and operating layout
The rotary head sits on the mast guide, with hydraulic hoses routed alongside it. The mast folds across the chassis. The side panel groups manual levers, switches and gauges beside the engine enclosure.
What are the drill-pipe diameter options?
The drill-pipe diameters are 76, 89 and 102 mm. These refer to the drill pipe, while the borehole-diameter range is 105–305 mm.
Explore water well drilling rigs, or request a quotation for the DR-150 Water Well Drilling Rig.

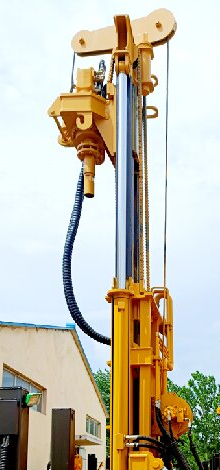

Mast-mounted rotary head
The rotary head is mounted on the mast guide, with hydraulic hoses beside the head and guide structure. The upright mast places the drilling assembly above the front opening in the chassis.
Side controls and folding mast
The side-mounted panel brings manual levers, switches and gauges together above the operating platform. The folded mast lies across the chassis, while the crawler tracks and four stabilizer legs support the machine.
Technical specifications
| Model | DR-150 |
|---|---|
| Maximum borehole depth rating | 300m |
| Borehole diameter | 105-305mm |
| Drill pipe diameter | 76-89-102mm |
| Engine power | 92KW |
