DR-170T DTH Drilling Rig
Holes 90–138 mm · Torque 3,200 N·m · Feed travel 3,660 mm
The DR-170T DTH Drilling Rig is a crawler rig for 90–138 mm surface rock holes. Its hydraulic rotary head delivers 3,200 N·m torque, with cylinder-and-chain feed, 3,660 mm feed travel and 45 kN maximum pull-up force.
Technical specifications
| Model | DR-170T |
|---|---|
| Hole depth | 30 m |
| Hole diameter range | 90–138 mm |
| Drill pipe | Ø76 × 3,000 mm |
| Air consumption | 8–20 m³/min |
| Rotation torque | 3,200 N·m |
| Feed mechanism | Hydraulic cylinder and chain |
| Feed total length | 5,645 mm |
| Feed travel length | 3,660 mm |
| Feed extension | 960 mm |
| Maximum feed speed | 26 m/min |
| Feed force | 20 kN |
| Maximum pull-up force | 45 kN |
| Tramming speed | 2.5 km/h |
| Traction force | 45 kN |
| Climbing ability | 25° |
| Ground clearance | 280 mm |
| Working air pressure | 0.7–2.5 MPa |
Hydraulic rotary head and feed

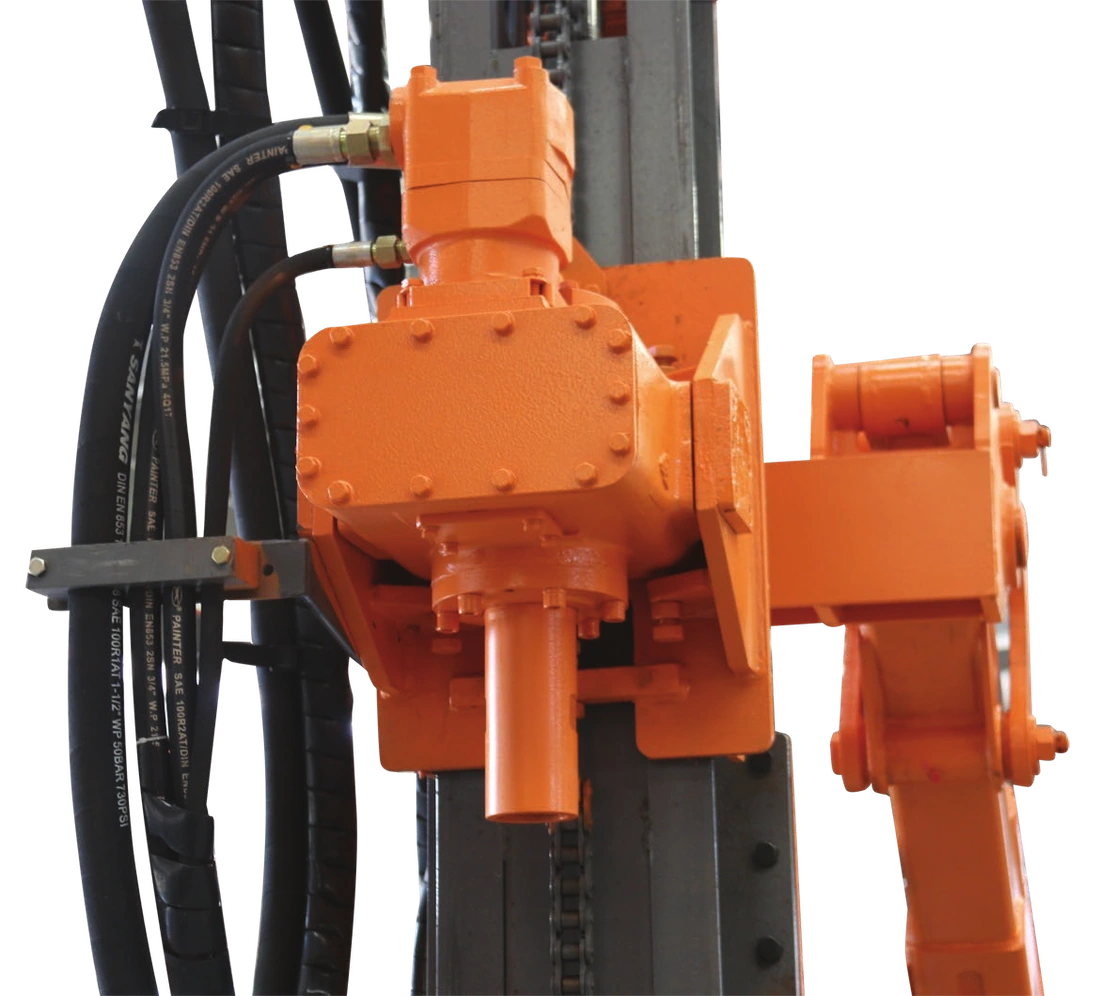

The hydraulic rotary head provides 3,200 N·m rotation torque with stepless speed adjustment. Its carriage runs along the feed beam, with nylon wear pads at the cradle and beam. Hydraulic cylinder-and-chain feed delivers 20 kN feed force and up to 45 kN pull-up force.
Gauge panel and operating levers

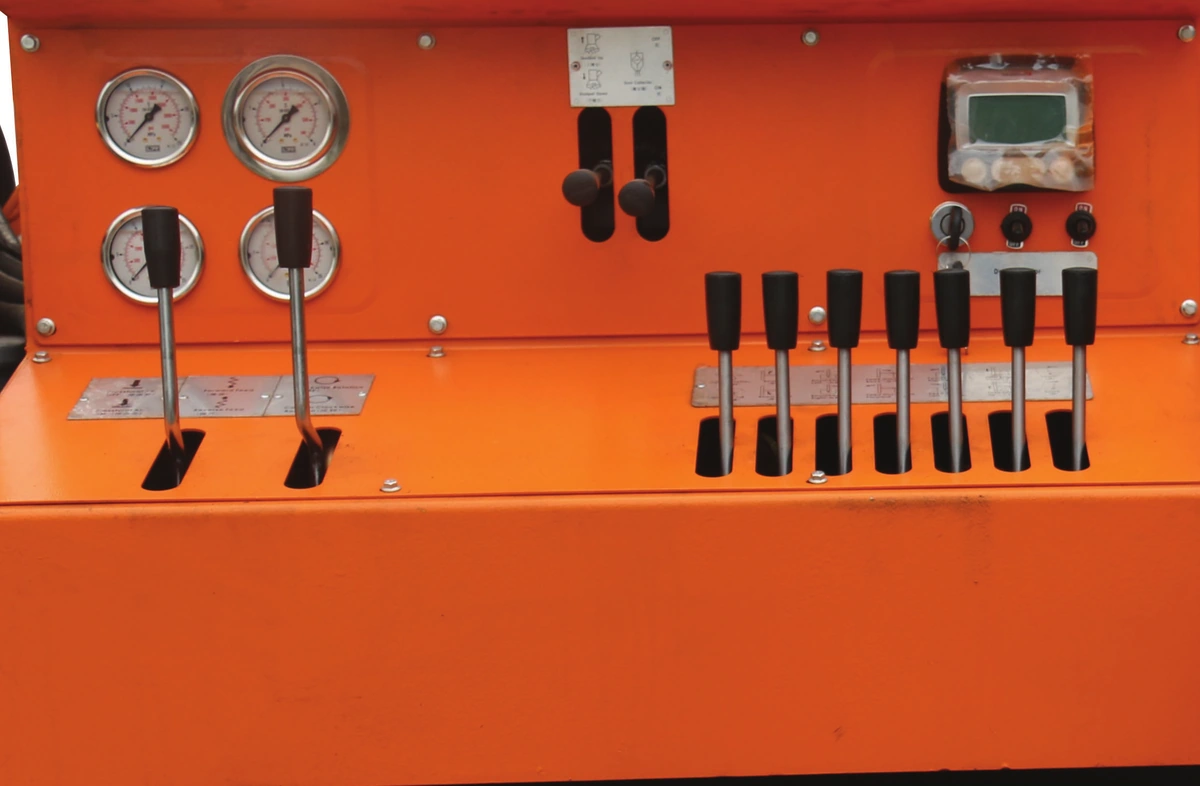

Four pressure gauges, a display and manual operating levers sit together on the side-mounted console. The two larger levers and the bank of seven smaller levers are within the same control area, with function labels beside the controls.
DR-170T DTH Drilling Rig for surface rock drilling

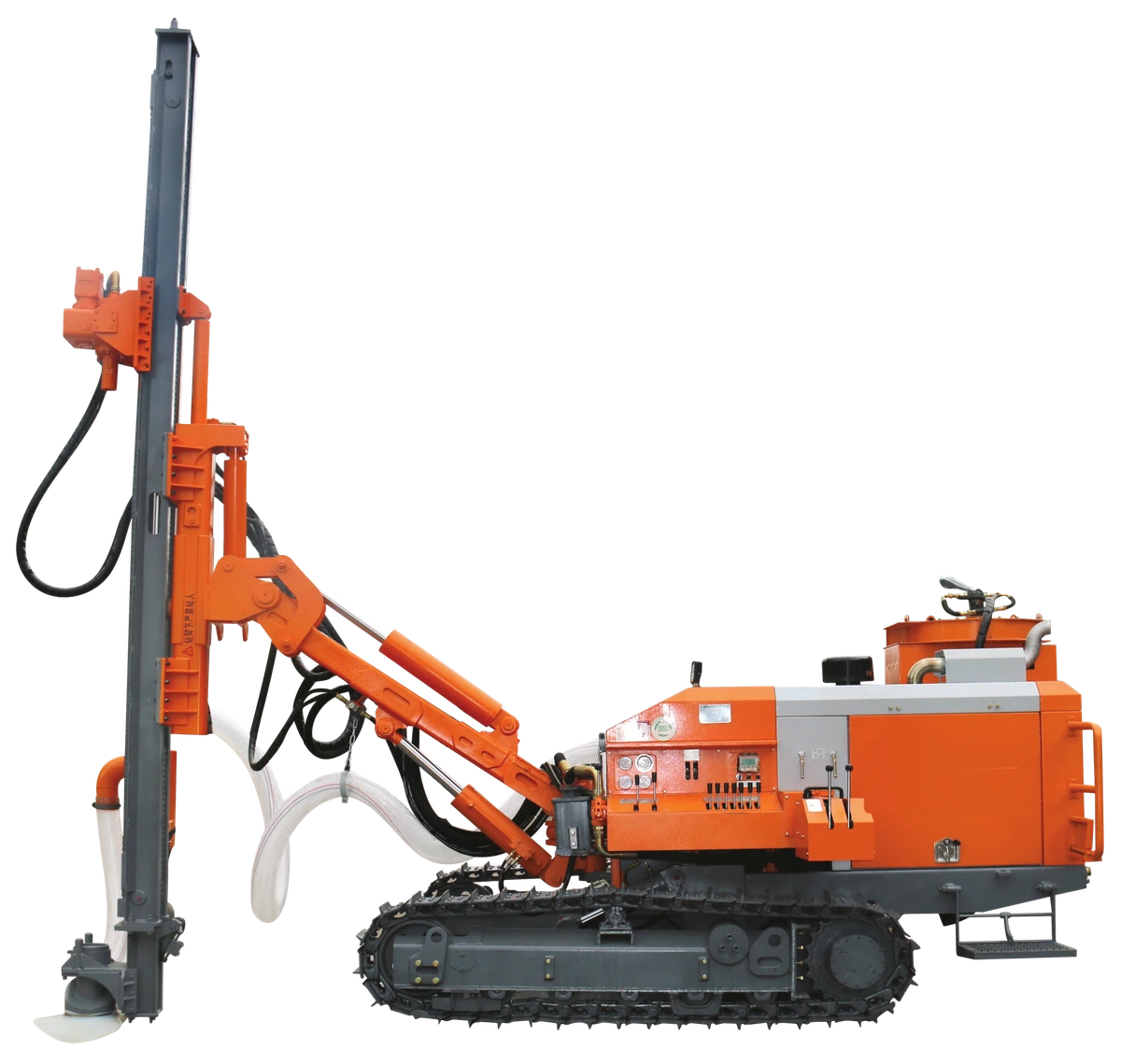

The DR-170T DTH Drilling Rig combines a crawler undercarriage, hydraulic boom and guided rotary head for quarry and open-pit drilling. The hole-diameter range is 90–138 mm and the hole-depth rating is 30 m. The drill string uses Ø76 × 3,000 mm pipe.
Rotation and feed assembly
The rotary head delivers 3,200 N·m torque with stepless speed adjustment. Hydraulic cylinder-and-chain feed moves the head along the beam. Feed travel is 3,660 mm, with a 960 mm feed extension and a total feed length of 5,645 mm.
The feed system supplies 20 kN feed force and up to 45 kN pull-up force. Maximum feed speed is 26 m/min. Nylon wear pads are fitted at the rotary-head cradle and feed beam.
Drilling controls and crawler chassis
The side-mounted control panel groups pressure gauges, the display and manual operating levers. Function labels sit alongside the controls. The crawler chassis has 280 mm ground clearance, 45 kN traction force and a travel speed of 2.5 km/h. Climbing ability is 25°.
Compressed-air requirements
Working air pressure is 0.7–2.5 MPa and air consumption is 8–20 m³/min. These figures define the compressed-air supply for the down-the-hole drilling system.
