DR-185A Air Compressor
Air delivery 6.1 m³/min · Pressure 0.8 MPa · Motor 37 kW
The DR-185A Air Compressor is a stationary electric screw compressor delivering 6.1 m³/min at 0.8 MPa. Its 37 kW motor runs on a 380 V, three-phase, 50 Hz supply.
Technical specifications
| Model | DR-185A |
|---|---|
| Air delivery (m³/min) | 6.1 |
| Discharge pressure (MPa) | 0.8 |
| Compression stages | Single stage |
| Motor power (kW) | 37 |
| Motor speed (rpm) | 3000 |
| Electrical supply (V / phases / Hz) | 380/3/50 |
| Starting method | Soft start |
| Drive method | Direct connection |
| Air outlet size | G1-1/2” |
| Cooling method | Air cooling |
| Dimensions (mm) | 1400*880*1300 |
| Weight (kg) | 780 |

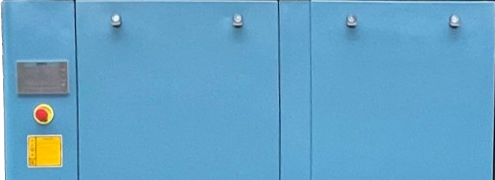

Front controls and cabinet panels
A narrow control strip on the front contains a display, a red pushbutton with yellow surround and a yellow warning label. Round fasteners sit near the upper edges of the adjacent cabinet panels.

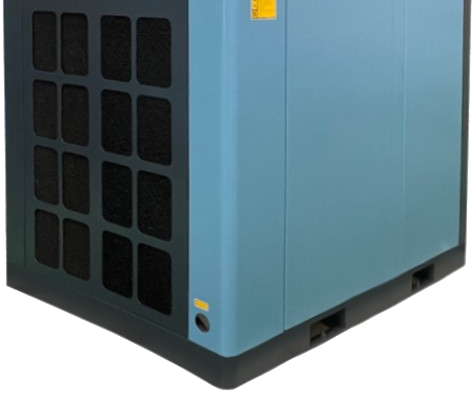

Ventilated side enclosure
The dark side panel has a rectangular ventilation grille with multiple openings. The compressor uses air cooling, and the side enclosure extends down to the cabinet base.
DR-185A Air Compressor: stationary electric air supply
The DR-185A Air Compressor delivers 6.1 m³/min at a discharge pressure of 0.8 MPa. The single-stage screw compressor uses direct drive and air cooling.
Motor and electrical supply
The 37 kW motor operates at 3,000 rpm with soft starting. Electrical supply is 380 V, three-phase, 50 Hz. The compressed-air outlet is G1-1/2”.
Cabinet and dimensions
The enclosed unit measures 1,400 × 880 × 1,300 mm and weighs 780 kg. Its front control strip sits beside two broad cabinet panels. A ventilation grille occupies the lower side panel.
