DR-375A Air Compressor
15 m³/min at 1.3 MPa · 132 kW diesel · Four wheels
The DR-375A Air Compressor is a four-wheel diesel screw compressor delivering 15 m³/min at 1.3 MPa (13 bar). Its single-stage system is paired with a 132 kW engine and a 230 L fuel tank.
Technical specifications
| Model | DR-375A |
|---|---|
| Drive | Diesel engine |
| Free air delivery | 15 m³/min |
| Discharge pressure | 1.3 MPa (13 bar) |
| Engine power | 132 kW |
| Compression stages | Single stage |
| Maximum working speed | 1950 rpm |
| Idle speed | 1450 rpm |
| Fuel tank capacity | 230 L |
| Chassis | Four wheels |
| Dimensions | 2,927 × 1,525 × 2,182 mm |
| Weight | 2,500 kg |

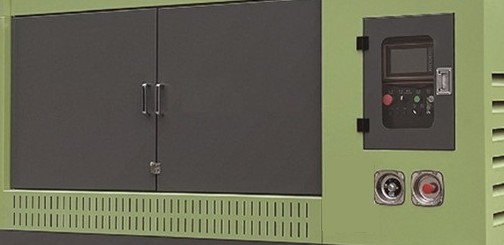

Control panel and access doors
A separate control panel is fitted beside the hinged access doors. It includes a screen and push-button controls. The compressor has automatic control and protection. Door handles and hinges are accessible from the side of the enclosure.

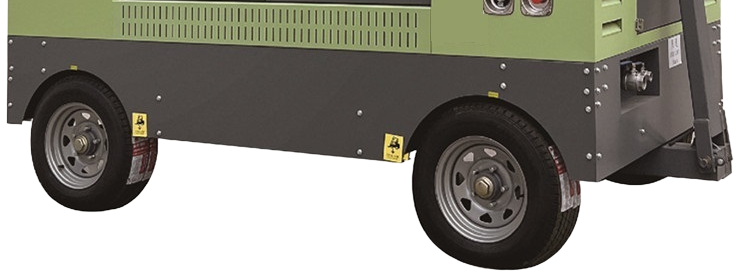

Four-wheel chassis and ventilated enclosure
The four-wheel chassis sits beneath the enclosed compressor unit. Mudflaps hang behind the visible wheels, and the body panels carry ventilation slots. Machine weight is 2,500 kg.
DR-375A Air Compressor: mobile diesel air supply
The DR-375A Air Compressor combines single-stage screw compression with diesel power in a four-wheel enclosure. Free air delivery is 15 m³/min at a discharge pressure of 1.3 MPa (13 bar).
Engine operating data
Engine power is 132 kW. Maximum working speed is 1950 rpm, with an idle speed of 1450 rpm. The fuel tank holds 230 L.
Enclosure and dimensions
The enclosure has hinged access doors and ventilation slots. Air-intake filtration uses a dual-element arrangement. Overall dimensions are 2,927 × 1,525 × 2,182 mm, and machine weight is 2,500 kg.
