DR-600 Water Well Drilling Rig
Depth rating 260 m · Diameter 130–254 mm · Feed 1,500 mm
The DR-600 Water Well Drilling Rig combines a wheeled tractor chassis with a rear-mounted pneumatic drilling assembly. It has a drilling-depth rating of 260 m, a 130–254 mm drilling-diameter range and a single feed stroke of 1,500 mm.
DR-600 Water Well Drilling Rig on a tractor chassis
The DR-600 Water Well Drilling Rig mounts its drilling mast behind a wheeled tractor. The mast, hydraulic valve banks and operating levers sit behind the driver position, with stabilizer legs at the front and rear of the machine.
Pneumatic drilling and feed
The drilling-depth rating is 260 m and the drilling-diameter range is 130–254 mm. Single feed stroke is 1,500 mm. The pneumatic system operates with 1.7–2.5 MPa working air pressure and 17–31 m³/min air consumption.
Local hydraulic controls
Labeled levers control rotation, fast and slow lifting, and the front and rear stabilizer legs. The lower drilling assembly has a circular guide opening between the rear stabilizers. Overall machine weight is 4 t.
Explore water well drilling rigs, or request DR-600 Water Well Drilling Rig specifications.

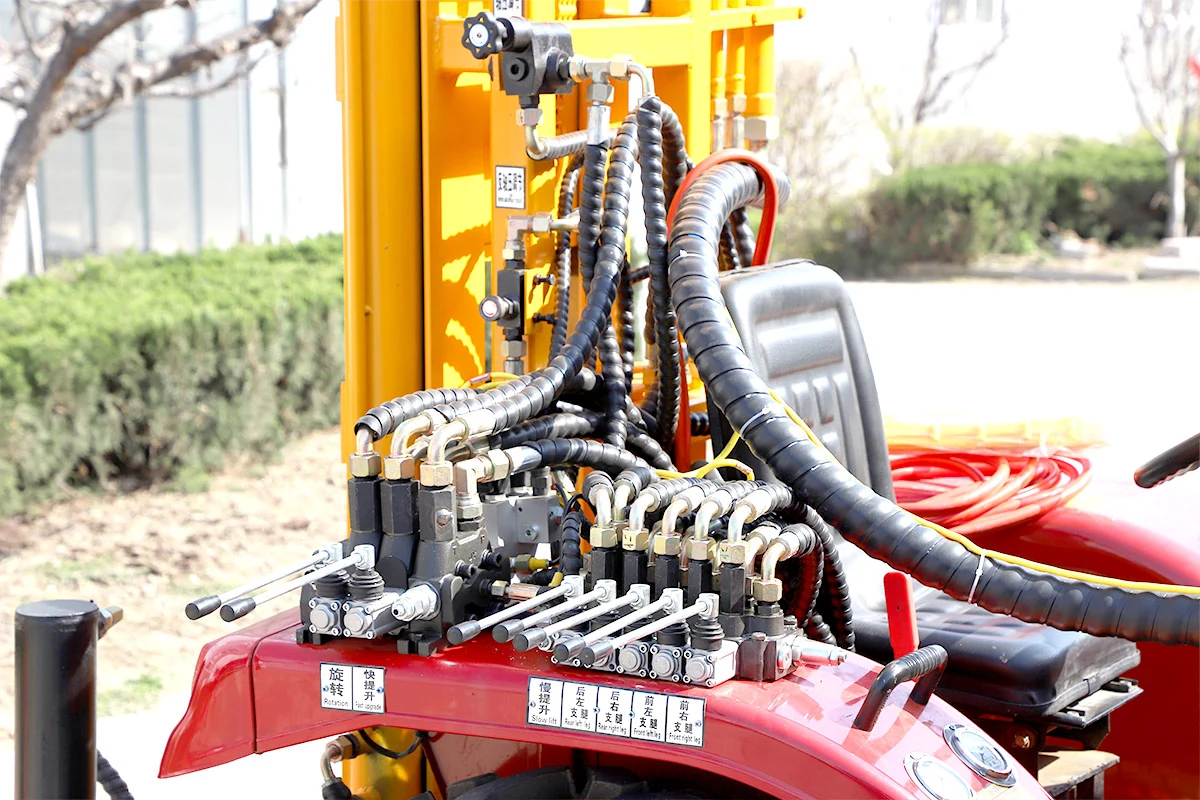

Hydraulic operating controls
Valve banks and lever controls are grouped beside the operator seat. The labels identify rotation, fast and slow lifting, and the front and rear stabilizer legs. Sleeved hydraulic hoses connect above the valves.

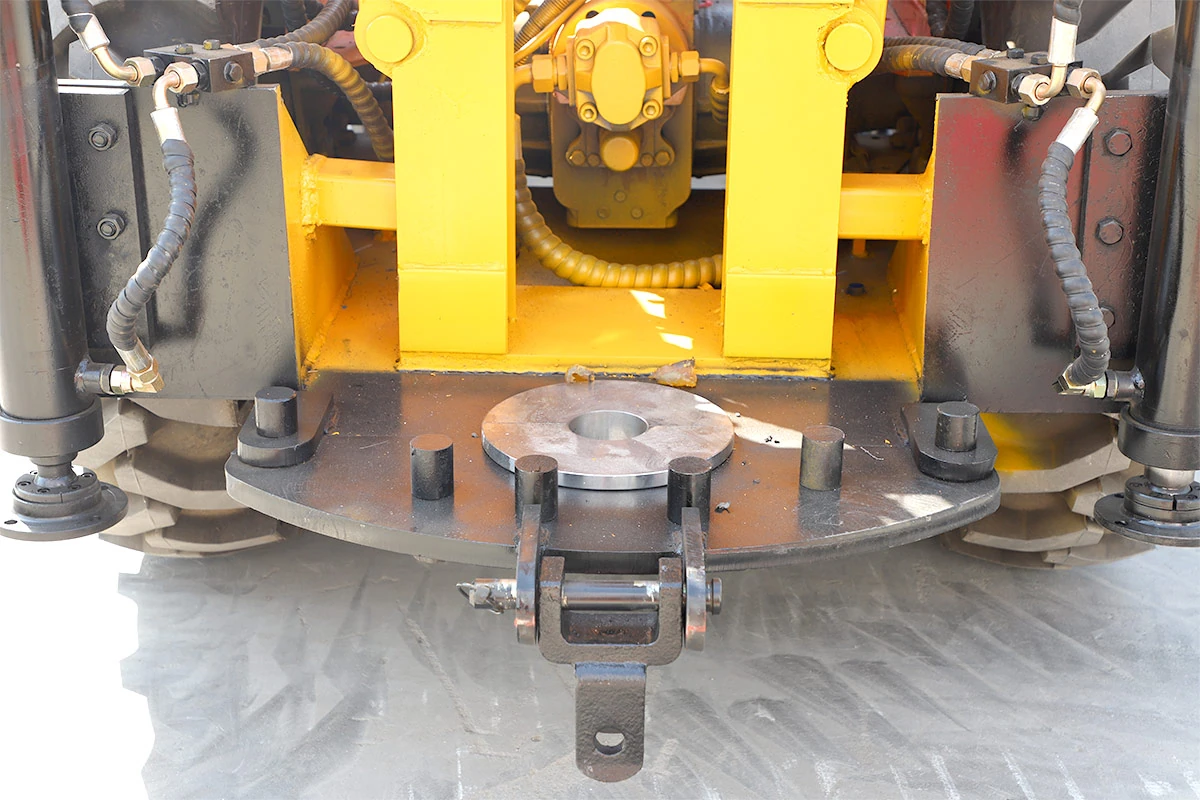

Drilling base and rear stabilizers
The lower drilling assembly includes a circular guide opening below the mast. Hydraulic stabilizer cylinders and ground-contact pads sit on either side, with hoses and fittings mounted beside the support structure.
Technical specifications
| Model | DR-600 |
|---|---|
| Drilling depth rating | 260 m |
| Drilling diameter | 130–254 mm |
| Single feed stroke | 1,500 mm |
| Working air pressure | 1.7–2.5 MPa |
| Air consumption | 17–31 m³/min |
| Overall weight | 4 t |
