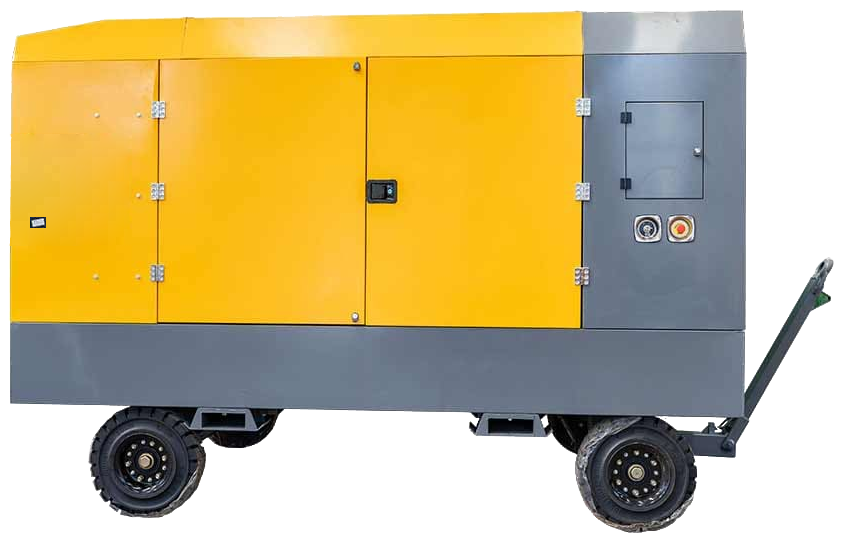

DR-750A Air Compressor
Air delivery 29 m³/min · Pressure 2.3 MPa
The DR-750A Air Compressor is a wheel-mounted screw compressor delivering 29 m³/min at 2.3 MPa. It uses a CA6DL2-35G31-YM10 engine and weighs 3,600 kg.
Technical specifications
| Model | DR-750A |
|---|---|
| Air delivery (m³/min) | 29 |
| Discharge pressure (MPa) | 2.3 |
| Engine model | CA6DL2-35G31-YM10 |
| Weight (kg) | 3600 |
| Dimensions (mm) | 3100×1900×1950 |

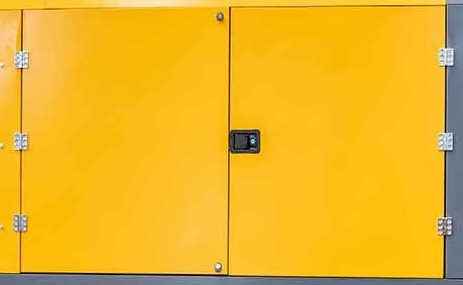

Hinged side access doors
The yellow side enclosure uses hinged panels with a central latch. The hinges and panel joints are exposed on the outside. A separate, smaller hinged cover sits in the grey end section.

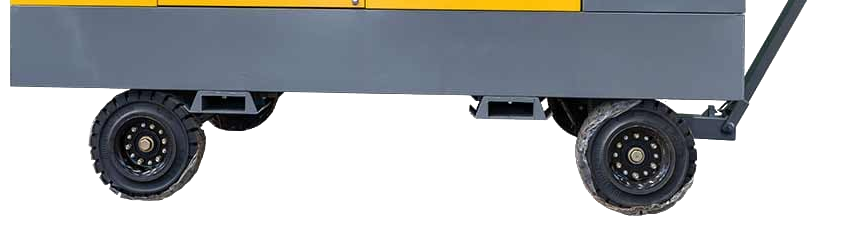

Wheel-mounted chassis and drawbar
The compressor housing sits on a wheeled undercarriage. A drawbar is attached to the lower front frame and projects beyond the housing. The complete unit weighs 3,600 kg.
DR-750A Air Compressor: wheeled compressed-air supply
The DR-750A Air Compressor combines screw compression with a wheel-mounted chassis. Air delivery is 29 m³/min at a discharge pressure of 2.3 MPa.
Engine and overall dimensions
The compressor uses a CA6DL2-35G31-YM10 engine. Overall dimensions are 3,100 × 1,900 × 1,950 mm, and the complete unit weighs 3,600 kg.
External arrangement
The enclosure combines hinged side access doors with an end-panel ventilation grille. A smaller hinged cover sits in the grey end section. The wheeled frame carries a front drawbar.
