DRW130 Water Well Drilling Rig
Depth 130 m · 100–219 mm
The DRW130 Water Well Drilling Rig combines a crawler chassis, a folding mast and a side-mounted operating console. It has a drilling-depth rating of 130 m, a hole-diameter range of 100–219 mm and a machine weight of 3 t.
DRW130 Water Well Drilling Rig: mast and chassis
The DRW130 Water Well Drilling Rig carries the drilling mast, power unit and operator station on one crawler chassis. The mast stands upright in the drilling position and folds down along the chassis. Four stabilizer legs extend to individual ground-contact footplates around the frame.
Rotary head and feed system
The rotary head sits on the mast carriage, with feed chains running beside the mast guides. Flexible hydraulic hoses connect to the head and follow its travel. The drilling spindle points toward the lower clamp assembly on the same drilling axis.
Controls grouped beside the mast
The side-mounted console brings circular gauges and manual operating levers together on an upright panel. A seat sits beside the machine housing, with a separate bank of levers below it. The console is accessible from the side of the rig.
Drilling range
The drilling-depth rating is 130 m and the hole-diameter range is 100–219 mm. The machine weighs 3 t.
Explore water well drilling rigs, or request a quotation for the DRW130 Water Well Drilling Rig.

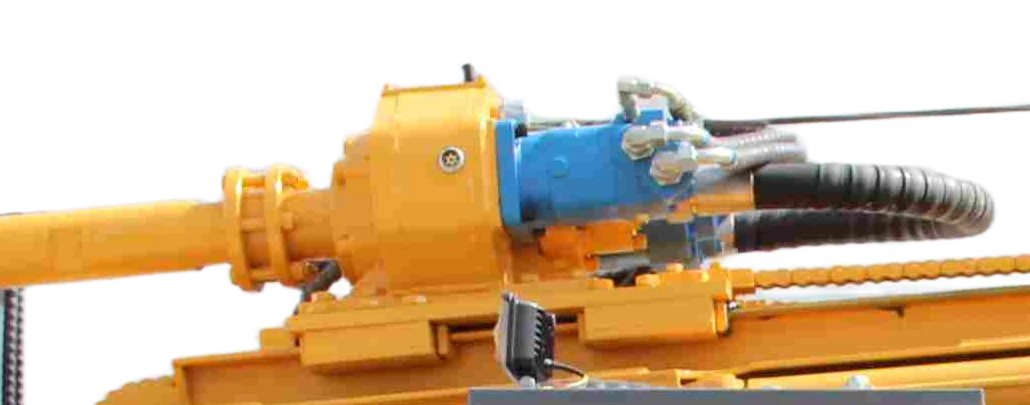

Mast carriage and hydraulic head
The rotary head runs on the mast carriage beside the feed chains. Hydraulic hoses connect directly to the head, with the spindle aligned above the lower drilling assembly.

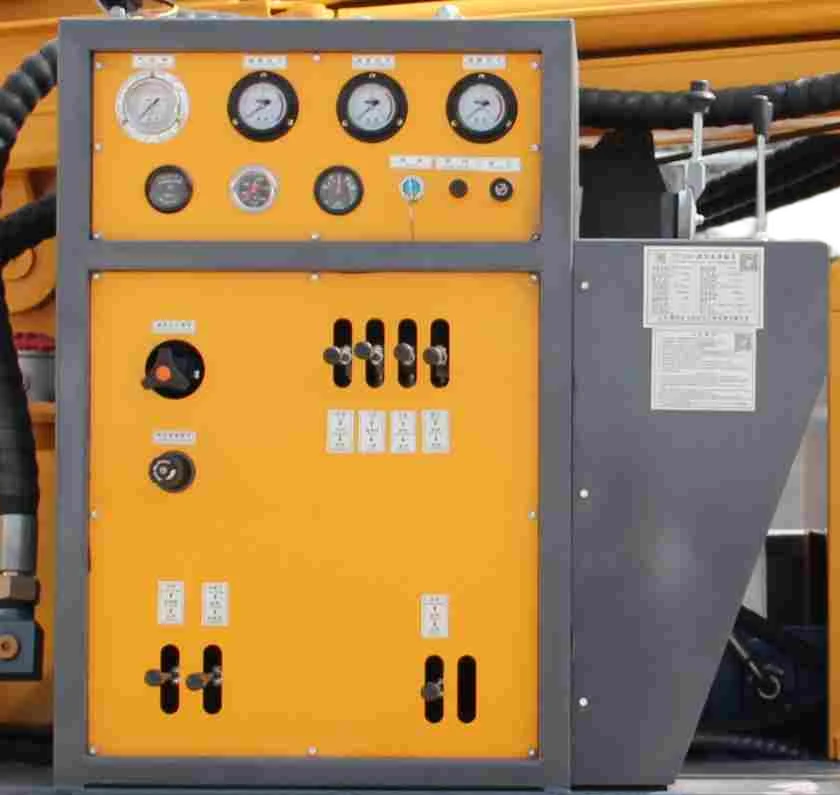

Side-mounted operating console
Round gauges and manual levers are grouped on an upright panel beside the mast. The separate seat and lower lever bank sit alongside the machine housing.
Technical specifications
| Drilling depth | 130 m |
|---|---|
| Hole diameter | 100–219 mm |
| Weight | 3 t |
